SCITOO 742-608 Power Window Regulator Motor User Manual

1. Khoom Tshajview

This manual provides instructions for the SCITOO 742-608 Power Window Regulator Motor. This component is designed as a direct replacement for the original equipment in compatible vehicles, ensuring proper fit, function, and performance for your vehicle's power windows.

2. Kev sib haum xeeb

The SCITOO 742-608 Power Window Regulator Motor is compatible with the following vehicle models and years. Please verify your vehicle's make, model, and year against this list to ensure proper fitment.

Compatible Scion Models:

• Scion tC: 2007-2008
• Scion xB: 2008-2012
• Scion xD: 2008-2012

Compatible Toyota Models:

• Toyota 4Runner: 2003-2009
• Toyota Avalon: 2005-2009
• Toyota Camry: 2001-2003, 2005-2006
• Toyota Corolla: 2009-2019
• Toyota FJ Cruiser: 2007-2014
• Toyota Tacoma: 2005-2015
• Toyota Tundra: 2004-2020
• Toyota Highlander: 2008-2019
• Toyota Matrix: 2009-2014
• Toyota Prius: 2003-2009
• Toyota RAV4: 2006-2018
• Toyota Sequoia: 2008-2020
• Toyota Sienna: 2004-2010
• Toyota Yaris: 2007-2015

OEM Number: 742-608 : kuv

Image: Vehicle Fitment Chart showing compatible Toyota models and their engine sizes.

Image: Additional Vehicle Fitment Chart showing compatible Toyota and Scion models.

Image: Further Vehicle Fitment Chart showing compatible Toyota models and their engine sizes.

3. Khoom Nta

• OEM Replacement: Engineered to match the original equipment's shape and dimensions for a direct, seamless fit.
• Txoj hauj lwm: Suitable for Front/Rear Left or Rear Right window regulator motor applications.
• Khoom siv: Constructed from durable metal for longevity.
• Voltage: Operates at 12 Volts.
• Ceev: 1500 RPM.
• Nees: 0.04hp ua.
• Overcurrent and Overheat Protection: Designed with safety features to prevent damage.
• High Temperature Resistance: Resistant to temperatures up to 125 degrees Celsius.
• Plug & Ua Si: Features a 6-pin connector for easy installation.
• Strong Power Center: Ensures smooth and responsive window operation.

Image: Detailed information highlighting the application position, terminal quantity, electric/manual type, exterior finish, connection type, and motor inclusion.

Duab: Close-up views of the motor's internal components, showing power with motor, pure-copper winding, and motor backward view.

Image: Shows the powerful lift motor with fine copper and craft, and the 6-pin plug & play connector.

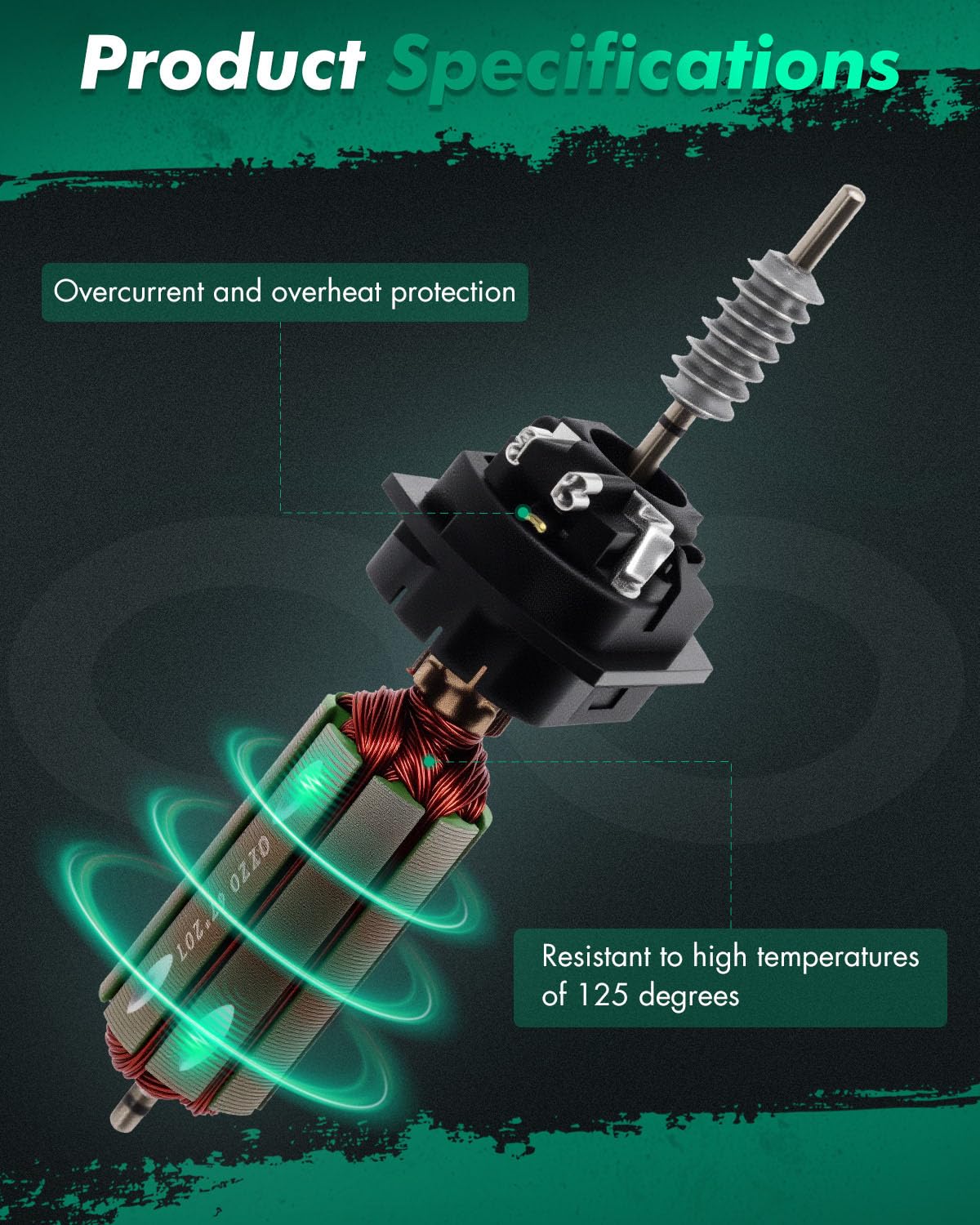

Image: Illustrates overcurrent and overheat protection, and resistance to high temperatures of 125 degrees.

4. Cov txheej txheem kev teeb tsa

This replacement power window motor is precision-engineered for specific vehicle years, makes, and models. For successful installation, it is highly recommended to:

• Consult the appropriate shop manual for your specific vehicle to obtain detailed service instructions.
• If you lack the necessary installation manual or sufficient skill, seek assistance from a qualified mechanic.
• Xyuas kom tseeb tias lub roj teeb ntawm lub tsheb raug txiav tawm ua ntej pib ua haujlwm hluav taws xob.
• Carefully remove the door panel and existing window regulator motor.
• Install the new SCITOO 742-608 motor, ensuring all mounting points align and the electrical connector is securely attached.
• Test the window operation before reassembling the door panel.

Image: A close-up of a hand using a screwdriver to install a component into a car door, illustrating the "Easy Installation" process.

5. Dab tsi hauv lub thawv

Lub pob feem ntau suav nrog:

• One (1) SCITOO 742-608 Power Window Regulator Motor.

Note: While the product is a Power Window Regulator Motor, the provided packaging information lists "Door Lock Actuator". Please verify contents upon receipt.

6. Cov lus qhia tshwj xeeb

7. Kev daws teeb meem

If you experience issues with your power window regulator motor after installation, consider the following:

• Window Not Moving: Check electrical connections to ensure they are secure. Verify power supply to the motor.
• Slow Window Operation: This could indicate a power issue or mechanical binding in the window track. Inspect the window track for obstructions or damage.
• Suab nrov txawv txawv: Grinding or clicking sounds may suggest mechanical issues within the regulator assembly or motor.

For complex issues or if you are unsure about diagnosing the problem, it is recommended to consult a qualified automotive technician.

8. Kev tu

The SCITOO Power Window Regulator Motor is designed for durability and minimal maintenance. However, to ensure optimal performance and longevity:

• Periodically inspect window tracks for dirt, debris, or obstructions that could hinder window movement.
• Lubricate window tracks with a silicone-based lubricant as recommended by your vehicle manufacturer to ensure smooth operation.
• Avoid excessive force when operating windows, especially if they encounter resistance.

9. Official Product Videos

The following videos provide additional information and visual guidance related to power window lift motors. These videos are provided by sellers and may offer insights into installation or product features.

10. Cov neeg siv khoom txhawb nqa

For further assistance, technical support, or warranty inquiries, please contact SCITOO customer service through the retailer where the product was purchased. Always refer to your vehicle's specific service manual for detailed repair procedures.
