SCITOO 42" Deck Rebuild Kit Instruction Manual
Qauv: 176182-5206-0919520941
1. Khoom Tshajview
This SCITOO 42" Deck Rebuild Kit provides essential components for maintaining your lawn mower's cutting deck. The kit includes a drive belt, two spindle assemblies, and two mower blades, designed for durability and efficient performance.
Duab 1: Tshajview of the SCITOO Lawn Mower Deck Rebuild Kit components.
2. Kev sib haum xeeb
This 42" Deck Rebuild Kit is compatible with the following Poulan Pro models:
- Poulan Pro PP19A42
- Poulan Pro PB185A42
- Poulan Pro PB195H42LT
- Poulan Pro PB20H42YT
It replaces OEM parts with the following numbers:
- Spindle Assembly: 187292, 192870, 532192870, 532187292, 539112057, 21546238, 532187281, 82-026, 285-58, B1RS47, 539-112057
- V-Belt: For AYP 429636, 532429636, 91753242936; For Snapper 704430, 13251, 265-693, 15-023
- Hniav: 21546095, 127843, 138498, 138971, 138971X431, 532 12 78-43, 532 13 84-98, 532 13 89-71, 6109-004-2012
Image 2: Diagram showing compatible vehicle models and reference OEM numbers for the kit components.
3. Cov khoom xyaw suav nrog
The mower deck rebuild kit includes the following:
- 1 x Drive Belt
- 2 x Spindle Assembly
- 2 x Mower Blades
4. Khoom Nta
Spindle Assembly
The spindle assembly is constructed from tough aluminum alloy, ensuring durability and effective performance. It features pre-tapped mounting holes and a grease zerk for easy maintenance.

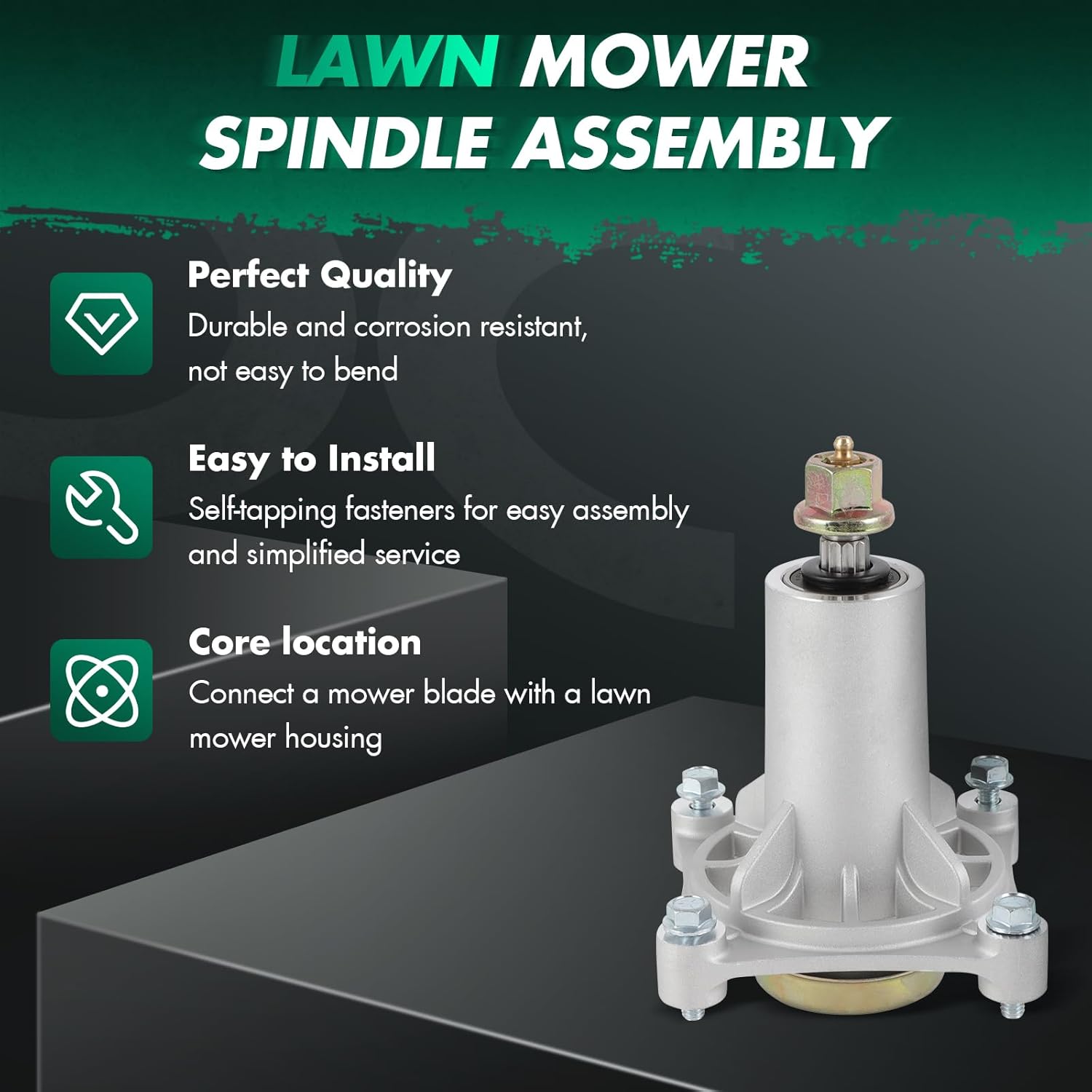

Duab 3: Paub meej view of the spindle assembly highlighting its perfect quality, ease of installation, and core function.
Tsav Siv Tsheb
The drive belt is made with isoprene rubber for high strength and internal polyester cords for added flexibility. It features a two-layer wrapping cover for enhanced durability.

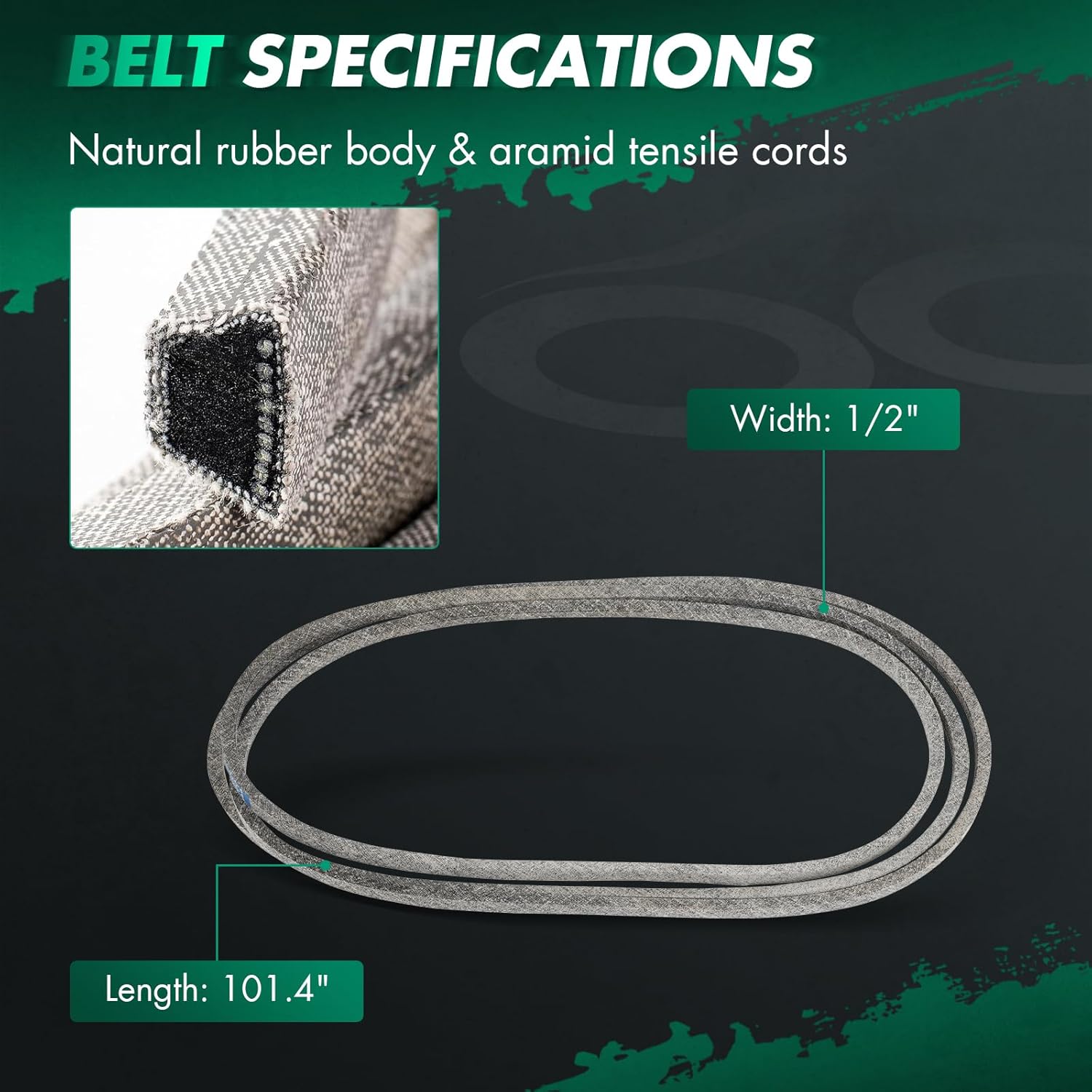

Image 4: Specifications of the drive belt, including material composition and dimensions (Length: 101.4", Width: 1/2").
Mower Hniav
The mower blades feature a smooth and sharp surface, effectively reducing friction and noise. They are designed with guarded paint to resist rust and corrosion, and are made from advanced high-strength steel for sharper cutting.
Image 5: Illustration of the mower blade's efficient cutting design, promoting airflow to push debris up and out.
These blades are suitable for overgrown weeds or clearing rugged terrain. They can be sharpened to maintain a neat, even cut for normal lawns.
Image 6: Mower blade shown in action, designed for effective cutting in challenging conditions.
5. Kev teeb tsa thiab kev teeb tsa
General Deck Removal (Example)
Before replacing any components, the mower deck must be safely removed from the riding lawn mower. The following video demonstrates a general process for removing a mower deck, which may vary slightly depending on your specific mower model.
Video 1: Demonstration of how to remove a mower deck from a riding lawn mower. This process involves putting the deck in the lowest position, removing various pins and clips, disconnecting the blade engagement lever, and detaching the drive belt.
Spindle Assembly Replacement
Once the mower deck is removed and inverted, you can proceed with replacing the spindle assemblies. The following videos provide visual guidance on this process.
Video 2: Ib qho yeeb yaj kiab luv luvasing the 187292 192870 Spindle Assembly with 195945 Pulley, demonstrating its components and fitment.
Video 3: A brief video illustrating the 187292 192870 187281 spindle assembly, useful for visual identification during replacement.
Video 4: This video highlights the 587819701 Spindle with 195945 Pulley, showing its features and how it fits.
Video 5: Ib qho yooj yim duaview of the 187292 and 153535 spindle components, useful for part identification.
Mower Belt Replacement Steps
- Kauj ruam 1: When replacing the belt, check the pulley bearings to ensure they spin freely, as damaged bearings can increase friction and wear.
- Kauj ruam 2: Look for rust or sharp edges on the pulleys, as they can cause damage to the belt and require immediate resolution.
- Kauj ruam 3: Clean debris from the pulley grooves to prevent stretching, slippage, or premature belt failure.
- Kauj ruam 4: Lastly, inspect the tensioner spring, as a weak spring can lead to belt slippage and increased friction.
Image 7: Visual guide detailing the four steps for replacing a lawn mower belt, focusing on pulley and spring inspection.
Choosing the Right Lawn Mower Blade
- Step 1: Consult the Parts Label: Consult the parts label under the hood of your lawn tractor or under the seat of your zero-turn mower. Alternatively, refer to your operator's manual.
- Step 2: Measure the Blade Length: Measure to make sure it matches the length of your old blade. Blade size is measured diagonally from the end of one cutting edge to another.
- Step 3: Identify the Deck Size: The deck size of your mower can help to identify the correct blades.
- Step 4: Match the Center Hole: Ensure the center hole pattern matches the pattern of the old blade.
Image 8: Four-step guide on how to select the correct lawn mower blade, covering parts label, length, deck size, and center hole matching.
6. Kev tu
The spindle assemblies are designed with a grease zerk for lubrication. Regular greasing is recommended to ensure smooth operation and prolong the lifespan of the bearings. It is a good idea to re-grease these every spring.
7. Cov lus qhia tshwj xeeb
- Khoom Dimensions: 22.05 x 7.28 x 7.09 po
- Yam khoom hnyav: 11.88 puj
- Chaw tsim tshuaj paus: SCITOO
- Qauv nab npawb: 176182-5206-0919520941 Ib
- Siv Ntev: 101.4 "
- Siv dav: 1/2 "
- Hniav Length: 21 "
- Deck Loj: 42 "
8. Warranty thiab Support
SCITOO products are designed for quality and durability. For specific warranty information regarding this deck rebuild kit, please refer to the product packaging or contact SCITOO customer support directly. Some similar products offer a one-year warranty.
Yog xav paub ntxiv los yog nug, thov mus saib hauv SCITOO Store on Amazon.
