Teufel Concept 8 Subwoofer Instruction Manual

1. Tshajview

The Teufel Concept 8 is a versatile 5.1 multichannel subwoofer designed to enhance your audio experience. It features a powerful 200 mm woofer, capable of delivering deep bass down to 33 Hz, suitable for rooms up to 25 m². This unit integrates an AV receiver with advanced connectivity options.

• Integrated AV receiver with Bluetooth 5.0 (Qualcomm aptX and AAC) for wireless audio streaming.
• HDMI (ARC, CEC) for seamless integration with your television and control.
• Dynamore technology for enhanced sound.
• Downfire driver with extreme excursion and a large bass reflex port to minimize flow noise, even at high volumes.
• 5.1 USB-C sound card function for direct digital audio connection.
• High-zoo Class D amplifier from Texas Instruments.
• Automatic standby activation for energy efficiency.
• Sound settings for various configurations, including 2.1 setup capability.
• Compatible with Teufel CONSONO, CUBYCON, ULTIMA 20, VITON, and LT 4 speaker systems.

Daim duab 1: Sab saum toj view of the Teufel Concept 8 Subwoofer with its integrated control panel.

2. Cov lus qhia kev nyab xeeb

Thov nyeem cov lus qhia kev nyab xeeb no kom zoo ua ntej siv lub cuab yeej. Khaws phau ntawv qhia no rau yav tom ntej.

• CEEB TOOM: Kev pheej hmoo ntawm hluav taws xob SHOCK. Tsis txhob qhib. Xa tag nrho cov kev pabcuam rau cov neeg ua haujlwm tsim nyog.
• Tsis txhob tso lub cuab yeej los nag lossis dej los tiv thaiv hluav taws lossis hluav taws xob poob.
• Xyuas kom muaj qhov cua kom zoo. Tsis txhob thaiv qhov qhib qhov cua.
• Place the subwoofer on a stable, level surface to prevent it from falling.
• Khaws lub cuab yeej kom deb ntawm qhov chaw cua sov xws li lub tshuab hluav taws xob, lub tshuab hluav taws xob, lub qhov cub, lossis lwm yam khoom siv uas ua kom sov.
• Tsuas yog siv cov ntawv txuas / khoom siv tau teev tseg los ntawm cov chaw tsim khoom.
• Unplug lub cuab yeej thaum muaj cua daj cua dub lossis thaum tsis siv rau lub sijhawm ntev.
• Do not insert any objects into the device openings.

Figure 2: Rear panel warnings, emphasizing the need for professional servicing.

3. Cov ntsiab lus ntawm pob

Carefully unpack the box and ensure all items are present and in good condition. If any item is missing or damaged, contact your retailer immediately.

• Teufel Concept 8 Subwoofer unit
• Lub zog cable
• Chaw taws teeb tswj
• Speaker cable (approx. 25 meters)
• Cov neeg siv phau ntawv (cov ntaub ntawv no)

4. Teeb tsa

4.1 Qhov chaw

The Teufel Concept 8 Subwoofer is designed with a downfire driver, meaning the woofer faces downwards. For optimal performance, place the subwoofer on a solid, level floor surface. Avoid placing it directly against walls or in corners, as this can lead to exaggerated or boomy bass. Experiment with different positions in your room to find the best sound balance.

Figure 3: The downfire woofer and sturdy feet of the subwoofer.

4.2 Kev sib txuas

Before making any connections, ensure the subwoofer and all connected devices are powered off and unplugged from the mains.

Figure 4: Rear connection panel of the Teufel Concept 8 Subwoofer.

1. Speaker Outputs (Right Front, Center, Right Rear, Left Front, Left Rear): Connect your satellite speakers to these spring clip terminals. Ensure correct polarity (+ to + and - to -).
2. HDMI ARC/CEC (TV ARC/CEC): Connect an HDMI cable from your TV's HDMI ARC port to the subwoofer's HDMI ARC port for audio return channel functionality and integrated control.
3. HDMI UA: Connect other HDMI sources (e.g., Blu-ray player, game console) to this input.
4. USB-C (5.1 Sound Card): Connect a USB-C cable to your computer for 5.1 digital audio playback.
5. KHO MOB HAUV: Connect digital audio sources using an optical cable.
6. AUX IN (Left/Right Cinch): Connect analog audio sources using RCA cables.
7. 5.1 IN (Left/Right, Center/Sub, Rear L/R): For connecting a 5.1 analog audio source.
8. Hwj chim: Connect the supplied power cable to the subwoofer and then to a suitable wall outlet (220-240V AC 50/60Hz).

5. Cov lus qhia ua haujlwm

5.1 Tswj Vaj Huam Sib Luag

The subwoofer features a touch-sensitive control panel on its top surface for easy operation.

Daim duab 5: Paub meej view ntawm cov tswj vaj huam sib luag.

• Lub hwj chim khawm: Press to turn the subwoofer on or off.
• Input Selection Buttons (TV, HDMI, OPT, AUX, USB): Tap to cycle through available audio inputs.
• Bluetooth khawm: Nias thiab tuav kom nkag mus rau hauv hom Bluetooth pairing.
• Volume Controls (+/-): Adjust the overall system volume.

5.2 Bluetooth Pairing

1. Ensure the subwoofer is powered on.
2. Press and hold the Bluetooth button on the control panel until the Bluetooth indicator light flashes.
3. Ntawm koj lub xov tooj ntawm tes, qhib Bluetooth thiab tshawb nrhiav cov khoom siv muaj.
4. Select "Teufel Concept 8" from the list to pair. Once connected, the indicator light will become solid.

Figure 6: Subwoofer connected via Bluetooth to a smartphone.

5.3 HDMI ARC/CEC Functionality

When connected to a compatible TV via HDMI ARC, the subwoofer can receive audio from the TV and be controlled by the TV remote (volume, power on/off) through CEC (Consumer Electronics Control).

1. Connect an HDMI cable from the TV's HDMI ARC port to the subwoofer's HDMI ARC port.
2. Ensure HDMI ARC and CEC are enabled in your TV's audio settings.
3. Select the HDMI input on the subwoofer.

5.4 USB-C Sound Card

Connect your computer to the subwoofer via the USB-C port to use the integrated 5.1 sound card. Your computer should automatically detect the subwoofer as an audio output device.

5.5 Suab Settings

The rear panel offers controls for adjusting bass performance and speaker configuration.

• Bass Performance (Deep/Loud): Adjust the bass characteristics to your preference. "Deep" provides a more extended, subtle bass, while "Loud" offers a more impactful, pronounced bass.
• 2.1/5.1 Setup Switch: Select the appropriate setting based on whether you are using a 2.1 or 5.1 speaker configuration.

6. Kev tu

To ensure the longevity and optimal performance of your Teufel Concept 8 Subwoofer, follow these maintenance guidelines:

• Ntxuav: Use a soft, dry cloth to clean the exterior surfaces. Do not use liquid cleaners, aerosols, or abrasive materials, as these can damage the finish.
• Qhov cua: Ensure that the ventilation openings are not blocked by dust or debris. Periodically clean them with a soft brush or vacuum cleaner.
• Cia: If storing the subwoofer for an extended period, unplug it from the power outlet and store it in a cool, dry place, away from direct sunlight and extreme temperatures.
• Tsis txhob ntub dej: Keep the subwoofer away from water, high humidity, and other liquids.

7. Kev daws teeb meem

If you encounter issues with your Teufel Concept 8 Subwoofer, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Teufel customer support or a qualified service technician.

8. Cov lus qhia tshwj xeeb

• Hom: Teufel
• Qauv Lub Npe: CONCEPT 8 Subwoofer
• Max Speaker Output Power: 295 kwv
• Zaus tebIb: 33hz
• Connectivity Technology: Bluetooth 5.0 (Qualcomm aptX and AAC), AUX, HDMI ARC CEC, Stereo Cinch Input, 3.5 mm Jack Input, Optical Digital Inputs, Spring Clips, USB-C, HDMI Video Input/Outputs, High-Level Speaker Outputs, 5.1 USB Sound Card.
• Suab Tso Tawm Hom: Mono
• Mounting Hom: Pem teb
• Khoom siv: Yas
• Tshwj xeeb Feature: Portable

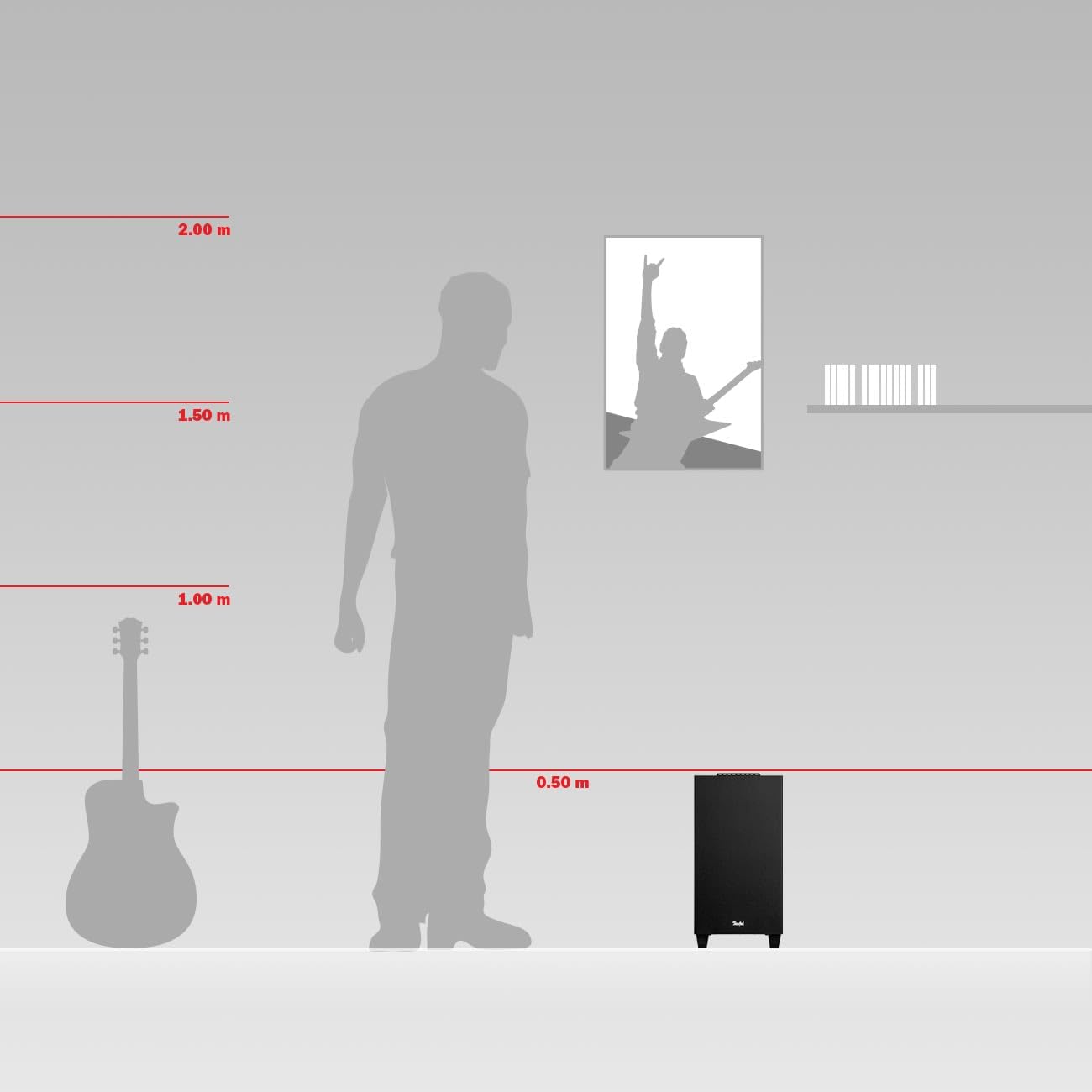

Figure 7: Subwoofer size comparison.

9. Warranty thiab Support

For detailed information regarding warranty terms, technical support, and service, please refer to the official Teufel website or contact your local Teufel dealer. Keep your proof of purchase for warranty claims.

Kev them nyiaj yug hauv internet: Mus saib www.teufelaudio.com rau cov FAQs, downloads, thiab cov ntaub ntawv tiv tauj.
