Retevis MateTalk L2 Global Walkie Talkie User Manual

1. Khoom Tshajview

The Retevis MateTalk L2 is a versatile global walkie talkie designed for reliable communication across various environments. It features a dual-mode system combining 4G LTE Public Network (PoC) with UHF/VHF dual-band analog capabilities, ensuring connectivity even in areas without cellular signal. The device supports Zello, GPS tracking, Wi-Fi connectivity, and dual SIM cards.

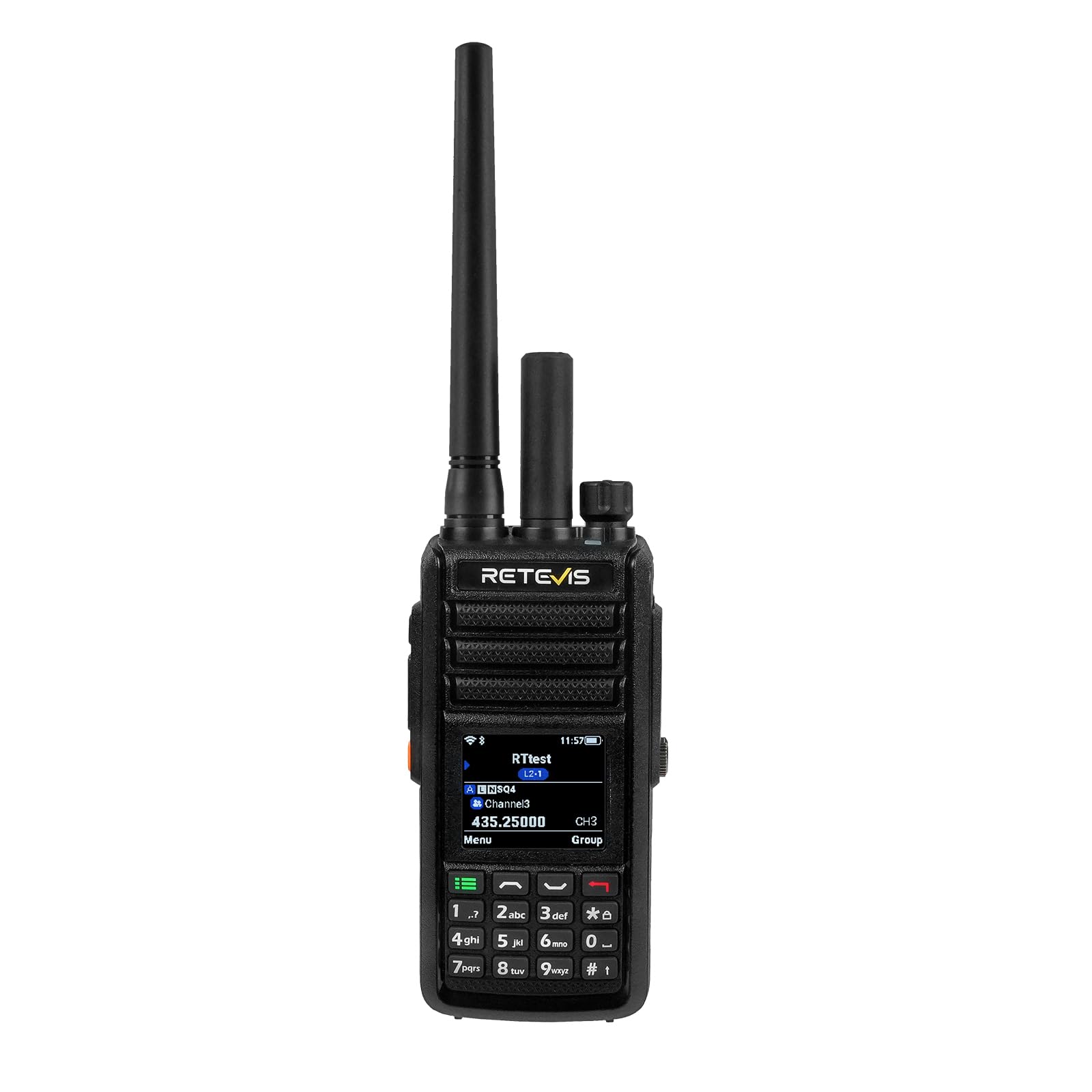

Image: Retevis MateTalk L2 Global Walkie Talkie displaying its hybrid connection capabilities.

2. Teeb Qhia

2.1 Ntim Cov Ntsiab Lus

Xyuas kom tseeb tias txhua yam khoom muaj nyob hauv koj pob:

• Matetalk L2 walkie talkie (x1)
• 3000mAh Li-ion battery (x1)
• Cov neeg siv phau ntawv (x1)
• Belt Clip & Hand strap (x1)
• SIM card (x1)
• Hom-C them Cable (x1)
• Programming cable (x1)

Image: All components included in the Retevis MateTalk L2 product package.

2.2 Kev teeb tsa thiab kev them nqi roj teeb

1. Xyuas kom tseeb tias lub cuab yeej raug kaw.
2. Align the 3000mAh Li-ion battery with the battery compartment on the back of the radio.
3. Gently press the battery into place until it clicks securely.
4. Connect the Type-C charging cable to the radio's charging port and a suitable power source. The charging indicator will illuminate.
5. Them lub roj teeb tag nrho ua ntej siv thawj zaug.

2.3 SIM daim npav teeb tsa

The MateTalk L2 supports dual SIM cards for 4G network connectivity.

1. Locate the SIM card slot, typically under the battery or on the side of the device.
2. Insert the provided SIM card (or your own compatible 4G SIM card) into the designated slot, ensuring correct orientation.
3. If using a second SIM, insert it into the secondary slot.

2.4 Pib Power-Up

To power on the device, rotate the power/volume knob clockwise until the screen illuminates. If the device does not power on, ensure the battery is correctly installed and charged.

2.5 Zello and Platform Setup

The device comes with Zello pre-installed and optimized. To use Zello and other PoC features, you may need to:

• Connect to a Wi-Fi network or ensure 4G data is active.
• Create or log in to your Zello account.
• For advanced PoC features, contact Retevis Direct for platform management account details if required.

3. Cov lus qhia ua haujlwm

3.1 Kev Tswj thiab Kev Sib Txuas Lus Yooj Yim

The MateTalk L2 features a 1.77-inch color LCD screen for intuitive navigation and a keypad for input. Key controls include:

• Lub hwj chim / Volume Knob: Rotate clockwise to power on/increase volume, counter-clockwise to decrease volume/power off.
• Dual PTT Buttons: One for PoC/4G communication, another for analog communication.
• Emergency Alarm (SOS) Button: Ua kom muaj kev ceeb toom xwm txheej ceev.
• Customizable Feature Button: Can be programmed for various functions.

Duab: Paub meej view of the Retevis MateTalk L2's buttons and external antennas.

3.2 Kev sib txuas lus hom

The MateTalk L2 offers four communication modes:

• PoC Mode (4G/Wi-Fi): Utilizes 4G LTE or Wi-Fi networks for unlimited range communication. Ideal for global communication via Zello.
• Analog Mode (UHF/VHF Dual-Band): Provides offline reliability for local communication without network dependency. Supports 200 channels.
• Hybrid hom: Allows real-time dual standby, monitoring both 4G PoC and analog channels simultaneously on one screen.
• Relay hom: Bridges traditional analog signals to the 4G PoC network, extending local analog coverage to a nationwide range.

Image: The MateTalk L2 operating in PoC Mode, demonstrating unlimited range via 4G/Wi-Fi.

Image: The MateTalk L2 in Analog Mode, supporting dual-band communication without cellular signal.

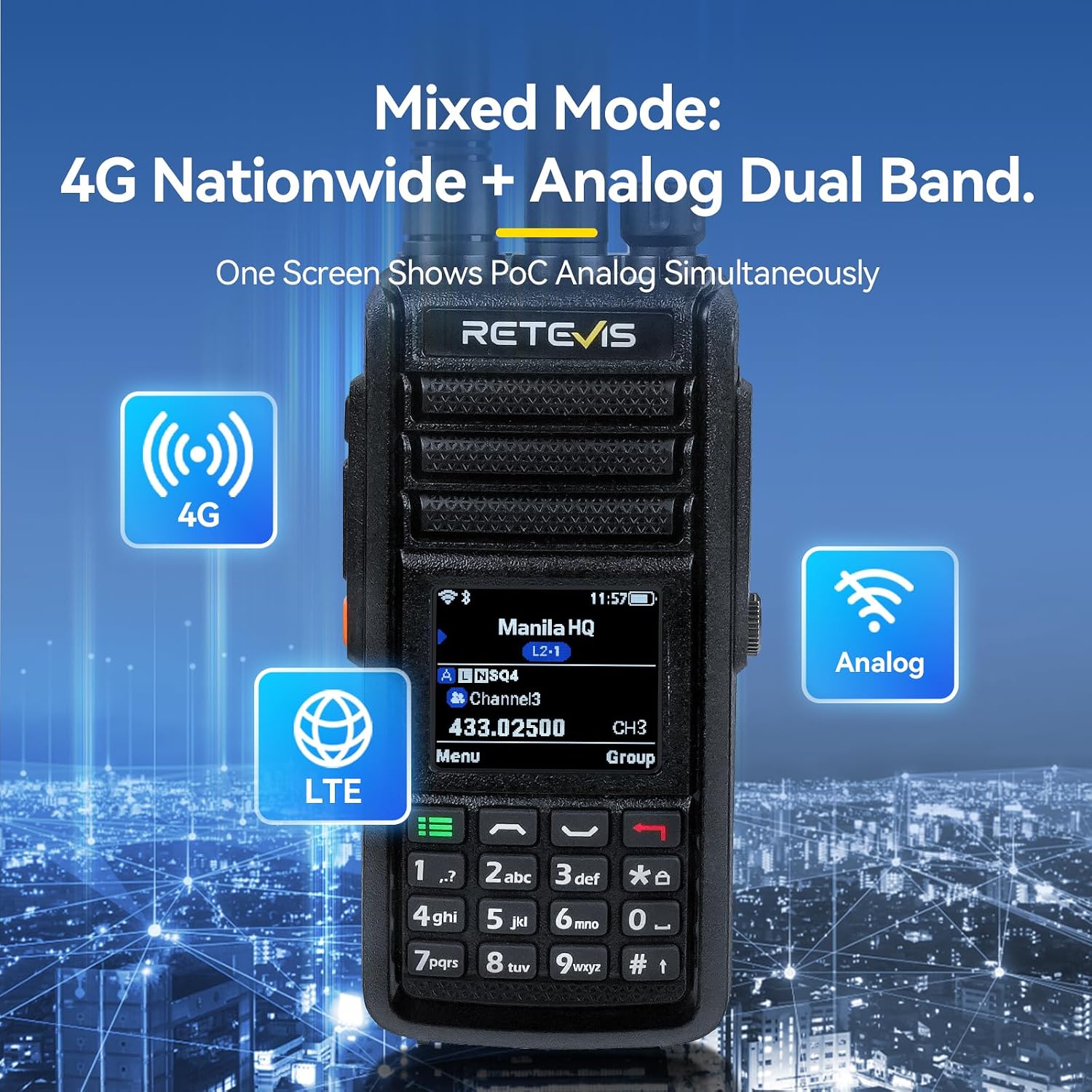

Image: The MateTalk L2 in Mixed Mode, displaying simultaneous 4G Nationwide and Analog Dual Band operation.

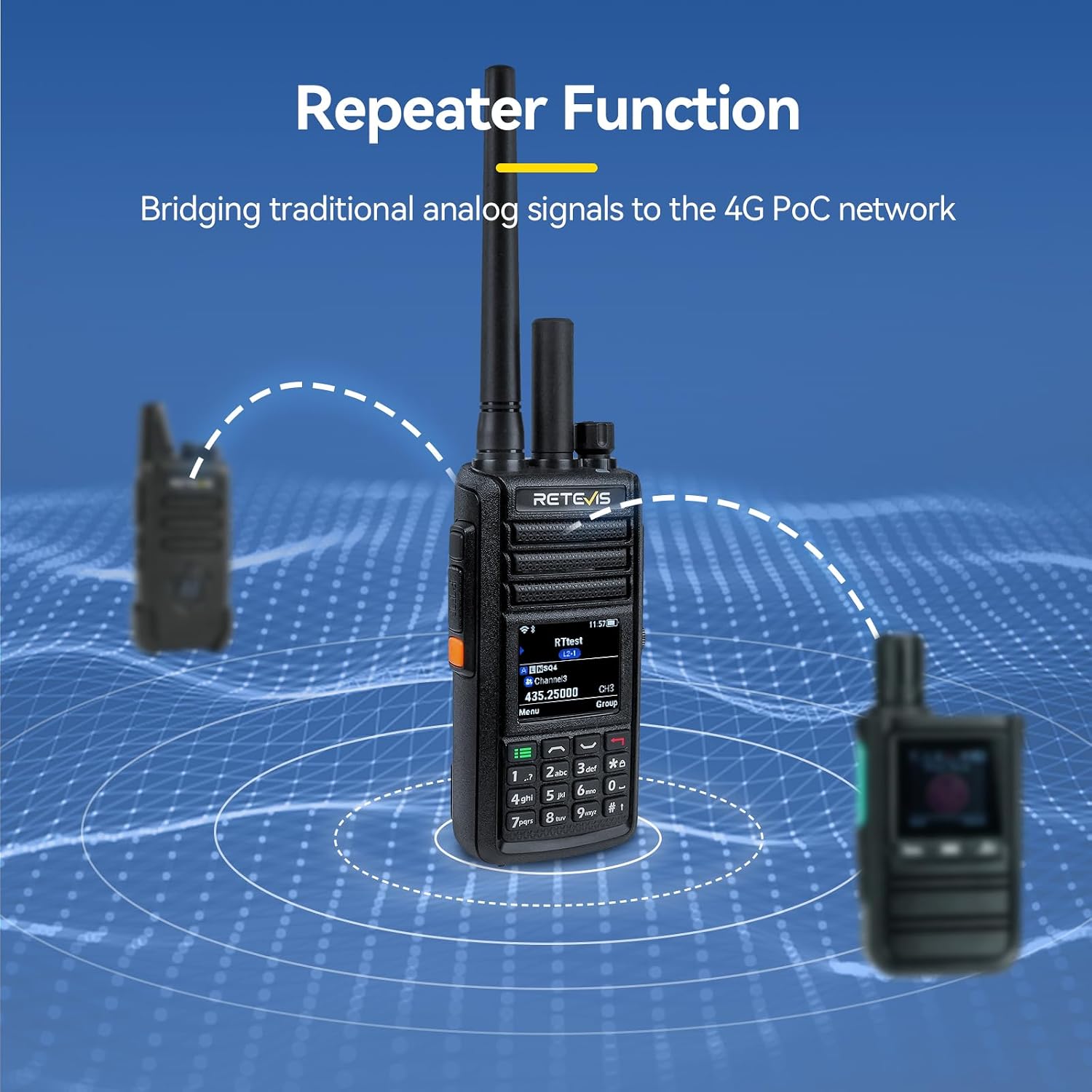

Image: The MateTalk L2 utilizing its Repeater Function to bridge analog signals to the 4G PoC network.

3.3 Triple Watch Technology

The device can monitor Zello, 4G LTE PoC, and analog channels simultaneously, ensuring you do not miss critical communications from any source.

Image: The MateTalk L2 screen demonstrating Triple Watch Technology, monitoring multiple communication channels.

3.4 Advanced Features

• GPS: Integrated GPS for real-time team tracking and location services.
• Wi-Fi: Supports Wi-Fi connectivity for data and PoC communication in indoor environments.
• AI Noise Reduction: An AI-powered noise-reduction chip ensures clear audio quality, especially in noisy environments.
• VOX muaj nuj nqi: Voice-activated transmission for hands-free operation. This can be configured in the radio's settings.

4. Kev tu

4.1 Waterproofing (IP67)

The MateTalk L2 is IP67 rated, meaning it is protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. While robust, avoid unnecessary exposure to water and ensure all port covers are securely closed to maintain its waterproof integrity.

Image: The MateTalk L2 demonstrating its IP67 waterproof capabilities.

4.2 Roj Teeb Kho

• Use only the original 3000mAh Li-ion battery and Type-C charging cable.
• Tsis txhob overcharging los yog tag nrho cov roj teeb kom nws lub neej ntev.
• Store the radio and battery in a cool, dry place when not in use.

4.3 Kev ntxuav

So lub xov tooj cua nrog mos, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the device is dry before charging or operating.

5. Kev daws teeb meem

If you encounter issues with your Retevis MateTalk L2, refer to the following common problems and solutions:

• Xov tooj cua tsis ua haujlwm:
  • Ensure the 3000mAh Li-ion battery is fully charged and correctly installed.
  • Verify the power/volume knob is rotated sufficiently clockwise. If the knob rotates endlessly without powering on, the unit may be defective. Contact customer support.
• Sluggish operating system or slow response:
  • Rov pib lub cuab yeej.
  • Ensure the device has sufficient free memory. Close unnecessary applications if applicable.
  • Check for available firmware updates from Retevis.
• Zello not working or incompatible:
  • Ensure you have a stable internet connection (4G or Wi-Fi).
  • Verify your Zello account credentials.
  • Note that the device may be optimized for specific Zello versions. Check for updates to the Zello application or consult Retevis support for compatibility information.
• Programming software issues:
  • Ensure you are using the correct programming cable and software version for the MateTalk L2.
  • Try running the software on a different computer or operating system if compatibility issues arise (e.g., Windows 10/11).
  • Contact Retevis customer support for assistance with programming software.
• No signal in PoC mode:
  • Check SIM card installation and ensure it has an active data plan.
  • Verify Wi-Fi connection if using Wi-Fi for PoC.
  • Ensure you are within 4G network coverage.
• No communication in Analog mode:
  • Check the selected channel and frequency.
  • Ensure the radio is within range of other analog radios.
  • Xyuas kom tseeb tias qhov kev sib txuas ntawm lub kav hlau txais xov.

6. Cov lus qhia tshwj xeeb

7. Warranty thiab Support

7.1 Warranty Information

Retevis provides a 2 xyoo warranty for the radio body and a 1 xyoo warranty for accessories. Additionally, there is a 30-day no-reason return policy. Beyond the warranty period, maintenance services are offered, with buyers responsible for associated costs.

7.2 Kev Pabcuam Cov Neeg Siv Khoom

For any questions, technical assistance, or warranty claims, please contact Retevis Direct through Amazon. They aim to reply within 12 hours.

Koj tuaj yeem mus saib tau Retevis Khw ntawm Amazon kom paub ntau ntxiv thiab kev txhawb nqa.
