Taw qhia
This manual provides essential information for the safe operation, maintenance, and care of your LESU 1/14 Aoue Lt5H Wheeled Skid-Steer Hydraulic RC Loader. Please read this manual thoroughly before operating the model to ensure proper function and longevity.

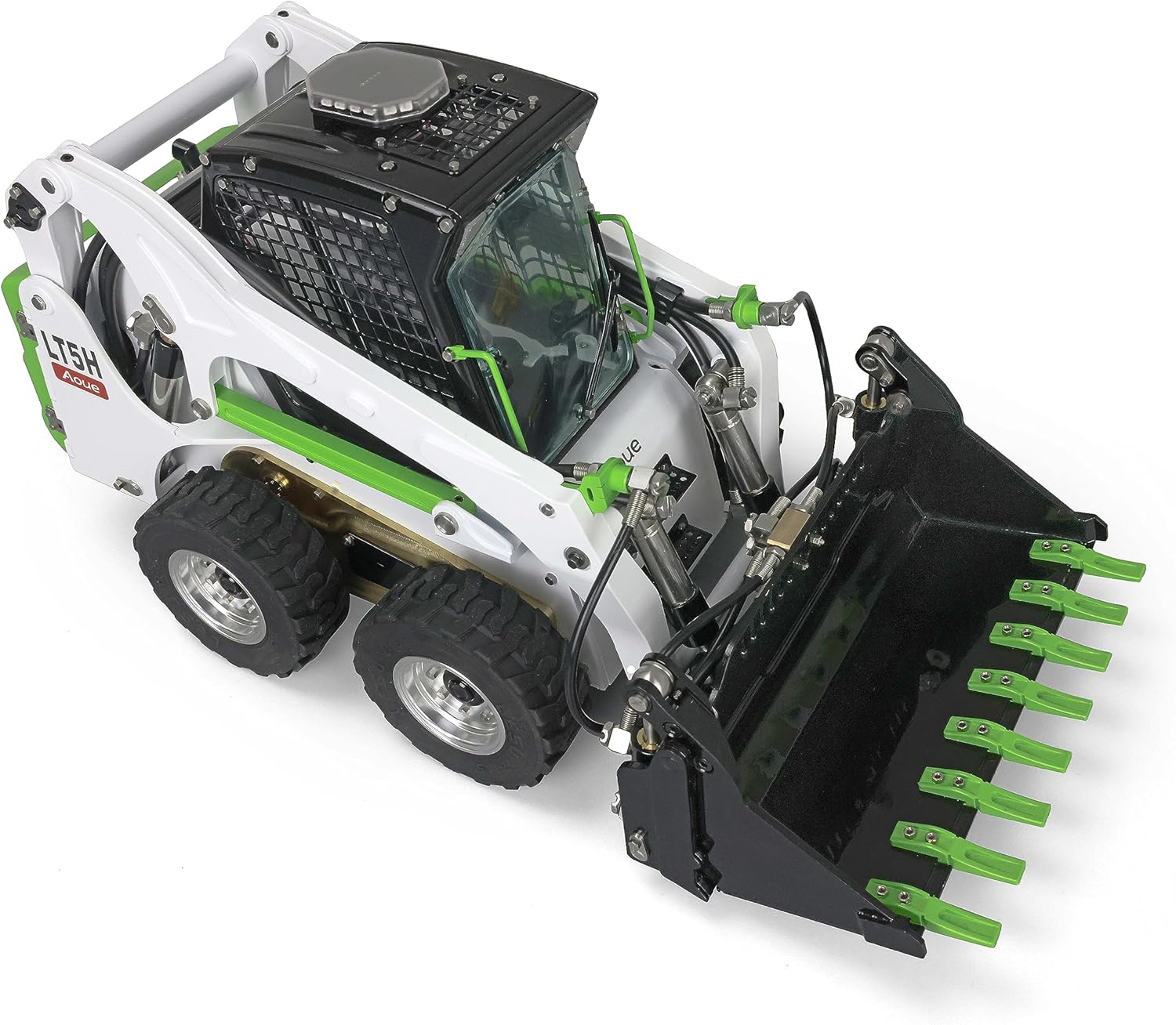

The LESU 1/14 Aoue Lt5H is a high-quality, hobby-grade remote-controlled hydraulic skid-steer loader. It features a detailed design, a precise hydraulic system, and realistic light and sound functions, offering an immersive operating experience.
Ntim Cov Ntsiab Lus
Xyuas kom tseeb tias txhua yam khoom teev hauv qab no suav nrog hauv koj pob:
- 1/14 Aoue Lt5H RC Loader (Assembled and Painted)
- Electronic Speed Controller (ESC)
- Tsav
- Servo
- Hydraulic System
- Flysky I6S Transmitter (Remote Control)
- Flysky Ia10B Receiver
- Lub teeb System
- Suab System
- 2S 800mAh Battery
- Charger
- Rotating Warning LED Light
Teeb tsa
Your LESU 1/14 Aoue Lt5H RC Loader comes pre-assembled and painted. The primary setup involves charging the battery and familiarizing yourself with the remote control.
- Roj teeb them:
Connect the provided 2S 800mAh Lithium Ion battery to the charger. Plug the charger into a suitable power outlet. Ensure the battery is fully charged before first use. Refer to the charger's specific instructions for charging times and safety precautions.
- Transmitter (Remote Control) Setup:
Install batteries into the Flysky I6S Transmitter. Power on the transmitter. The loader's receiver (Flysky Ia10B) is pre-bound to the transmitter. If re-binding is necessary, consult the Flysky I6S manual.
- Pib Pib-On:
Ensure the loader's power switch is in the OFF position. Connect the fully charged battery to the loader's battery connector. Secure the battery within its compartment. Turn on the transmitter first, then turn on the loader's power switch. The light and sound systems should activate.
Cov lus qhia ua haujlwm
The LESU Aoue Lt5H features a high-precision hydraulic system and dual motor travel drive for realistic operation. Familiarize yourself with the transmitter controls before operating in challenging environments.
Basic Controls:
- Tsav tsheb: Use the primary joystick on the transmitter to control forward, reverse, and steering (skid-steer motion).
- Bucket/Arm Movement: Utilize the secondary joysticks or switches to control the hydraulic arm's lift/lower functions and the bucket's tilt/dump actions. The hydraulic system ensures smooth and coordinated movements.
- Teeb: Activate the integrated light system, including the rotating warning LED light, via designated switches on the transmitter.
- Suab: The realistic sound system can be toggled on/off or adjusted using the transmitter controls.
Cov lus qhia ua haujlwm:
- Operate on flat, clear surfaces initially to get accustomed to the controls.
- The high-quality rubber tires and dual motor drive allow operation on soft, sandy, or muddy ground. However, avoid excessive water or submersion.
- Practice smooth, gradual movements with the hydraulic controls for realistic operation.
Official Product Video:
Kev tu
Regular maintenance ensures the longevity and optimal performance of your RC loader.
- Ntxuav: After each use, especially in dusty or dirty conditions, clean the loader with a soft brush or compressed air. Avoid using water directly on electronic components.
- Hydraulic System: Periodically check hydraulic fluid levels and inspect hoses for any leaks or damage. Refer to the hydraulic system's specific instructions for fluid type and refill procedures.
- Lubrication: Apply appropriate lubricant to moving parts, such as pivot points and linkages, to ensure smooth operation and prevent wear.
- Kev kho roj teeb: Always disconnect the battery after use. Store batteries in a cool, dry place. Do not overcharge or over-discharge the battery.
- Kev tshuaj xyuas: Regularly inspect all screws, nuts, and bolts for tightness. Check tires for wear and ensure they are securely attached.
Kev daws teeb meem
If you encounter issues with your RC loader, refer to the following common troubleshooting steps:
| Teeb meem | Ua Tau | Kev daws |
|---|---|---|
| Loader does not power on. | Battery not charged or connected; power switch off; transmitter off. | Ensure battery is charged and connected. Turn on loader's power switch. Turn on transmitter first. |
| No response from controls. | Transmitter batteries low; loader and transmitter not bound; interference. | Replace transmitter batteries. Re-bind transmitter and receiver (refer to Flysky I6S manual). Operate in an area free from strong radio interference. |
| Hydraulic functions are slow or weak. | Low hydraulic fluid; air in system; motor/pump issue. | Check hydraulic fluid level and refill if necessary. Bleed air from the hydraulic system (consult specific hydraulic system manual). Contact support if motor/pump is suspected. |
| Cov suab nrov txawv txawv thaum ua haujlwm. | Loose parts; debris in moving components; motor/gear issue. | Inspect for loose components and tighten. Clean any debris. If noise persists, contact support. |
Specifications
| Feature | Paub meej |
|---|---|
| Hom | LESU |
| Qauv | Aoue Lt5H |
| Yam khoom Model Number | LS-RD-A0008-RTR-UP2-PAINTING-BKWGN-1 |
| Scale | 1/14 |
| Khoom siv | Stainless Steel, Aluminum Alloy, Brass, Plastic |
| Xim | Gray & White & Green |
| Qhov Loj (L x W x H) | 15.6 x 11.7 x 10.92 nti (286 x 148 x 147.4 hli) |
| Roj teeb | 1 x 2S 800mAh Lithium Ion (included) |
| Chaw taws teeb tswj | Flysky I6S Transmitter |
| Hydraulic System | High-precision, with three-way reversing valve and brushless motor pump |
| Tsav System | Dual motor travel drive, high-quality rubber tires, precision chain |
| Nta | Light System, Sound System, Rotating Warning LED Light, Simulated Driver Doll |
Warranty thiab Support
LESU is committed to providing quality products and customer satisfaction.
- Cov khoom puas: If the item arrives damaged out of the box, a free replacement part can be resent.
- Kev pab txhawb nqa: A professional after-sales team and technical maintenance team are available. Technicians can provide guidance in English through video or text for repairs.
- For any queries or support needs, please contact the seller directly.
